High Temperature-Resistance Special Fiberglass Sleeving
High Temperature-Resistance Special Fiberglass Sleeving is a new kind of special high temperature-resistance fiberglass sleeving which is mainly used in automobile、shipbuilding、electrical equipment,illumination, motor equipment etc.

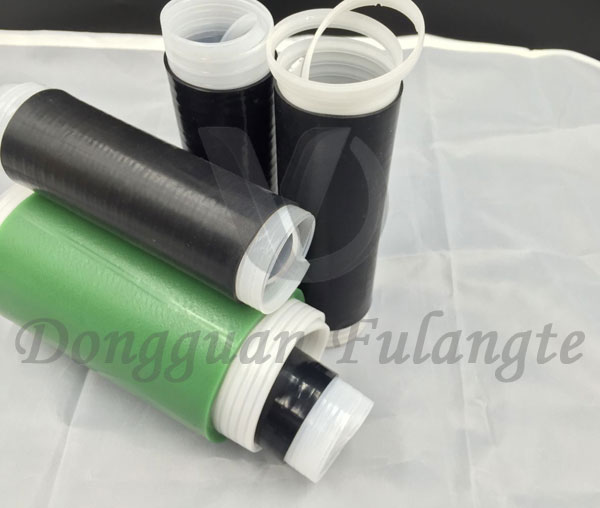

Silicone cold shrink tube
Product description features:
1.Offer good mechanical insulation and sealing protection.
2.Accommodating a wide range of cable sizes.
3.For indoor or outdoor applications.
4.Simple and fast installation.
Technology data
Item | Unit | Index | Standard |
Hardness | Shore A | 45 | ASTM D2240-75 |
Tensile strength | MPa | ≥9.8 | ASTM D412-75 |
Elongation at break | % | ≥840 | ASTM D412 |
Tear strength | KN/mm | ≥39 | ASTM D621 |
Breakdown strength | KV/mm | 23 | ASTM D149 |
Volume resistiviry | Ω.cm | 9*1015 | ASTM D257 |
Density | kg/mmm | 1.13 | ASTM D792 |
Features
1.Simple installation,requires no tools.
2.Accommodates a wide range of cable sizes.
3.Excellent moisture resistance,water proof big radial stress,good resilience and seals tight.
4.Good low temperature performance,undet 0℃ can shrink to therule size,the minimum temp-erature -60℃,high temperature perfomance,the highest temperature can reach 200℃.
5.Resists fungus,acids and alkalies,resists ozone.
6.Excellent physical and mechanical properties,great resistance to tearstrength,after knife cut a small incision,it will not ntinue to break down.
7.Excellent electrical insulation properties.
Application
Suitable for communication,cable conector waterproof,cable connection and seal; other types insulation protection.
