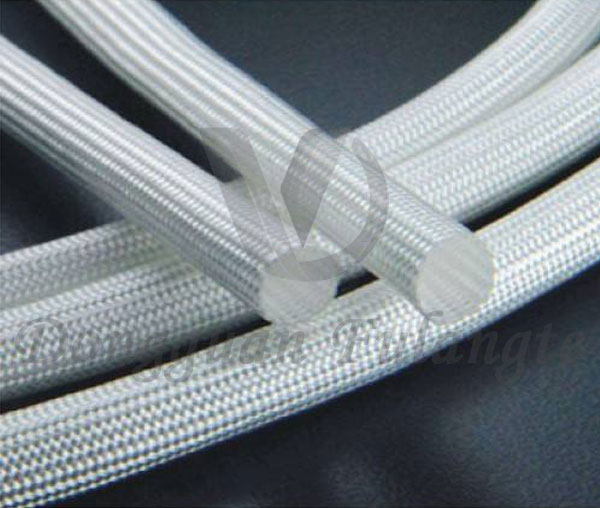

High Temperature-Resistance Special Fiberglass Sleeving
High Temperature-Resistance Special Fiberglass Sleeving is a new kind of special high temperature-resistance fiberglass sleeving which is mainly used in automobile、shipbuilding、electrical equipment,illumination, motor equipment etc.
Technology index：
Item | Value |
Continuous operating temperature | -10℃+600℃ |
Temperature endurance | 600℃±2℃ 168h |
Aging test | 600℃、6小時 No cracking |
Cold bend | No cracking |
Horizontal flame test | <30' S |
Flame retardance(VW-1) | <30' S |
Inside diameter measurement：
Size | Wall thickness | Voltage-resistance | Temperature-resistance | Flame resistance |
| 0.5mm-3.0mm | 0.18±0.05mm | 300-700V | -10℃+600℃ | VW-1 |
| 4.0mm-6.0mm | 0.3±0.05mm | 300-700V | -10℃+600℃ | VW-1 |
| 7.0mm-12.0mm | 0.35±0.05mm | 300-700V | -10℃+600℃ | VW-1 |
| 14.0mm-30.0mm | 0.43±0.05mm | 300-700V | -10℃+600℃ | VW-1 |
| 35.0mm-40.0mm | 0.53±0.05mm | 300-700V | -10℃+600℃ | VW-1 |
Package：
Standard roll package,other special package per you request
Color：
Standard color：white,other color can customize
